1-Wireless LAN
antennas
dual
diversity antenna system built into the display for optimal reception,
enabling wireless communication wherever you are. |
2-Hard disk
drive
The
ThinkPad computer has a large-capacity, customer-upgradable hard disk
drive that can meet a variety of storage demands. |
3-Ultrabay
Slim bay
The
ThinkPad computer has a bay for Ultrabay devices. The drive that comes
with the computer, either a DVD drive or a CD-RW/DVD drive, is installed
in the bay. |
4-External
monitor connector
An
external monitor or a projector can be attached to the ThinkPad computer
to display computer information. |
 Left
Side View |
 |
|
1-Security keyhole:The
ThinkPad computer comes with a security keyhole. You can purchase a
security cable and lock to fit this keyhole. |
|
2-USB connectors:
The Universal Serial
Bus (USB) connectors are used for connecting USB interface-compatible
devices, such as a printer or digital camera |
|
3-Video-out connector:
The ThinkPad Computer
has a video-out connector, with which you can attach a television. |
|
4-Modem connector:
Connect your computer
to a telephone line with the modem connector. |
|
5-Ethernet connector:
Connect your computer
to a LAN with the Ethernet connector. |
|
6-headphone jack :
Experience sounds by
connecting a headphone or speakers to the headphone jack. |
|
7-Microphone jack:
Capture sound by
connecting an external audio device (microphone) to the microphone jack. |
|
8-Fan louvers:
The internal fan and
louvers enable air to circulate in the computer and cool the central
processor. |
|
9-PC Card slots:
In the two PC Card
slots, you can insert numerous PC Cards, such as modem, data storage,
network, and SCSI connector cards. |
|

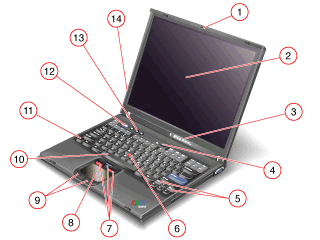

Front
Side View |
|
|
|
1-Thinklight:
Use the ThinkPad
computer under less than perfect lighting conditions. The ThinkLight
device illuminates the keyboard. |
|
2-Computer display:
The high-resolution,
thin-film transistor (TFT) display provides clear and brilliant text and
graphics. |
|
3-Power/System status indicators:
The computer has
system and power status indicators: Drive in use, Numeric lock, Caps
lock, Power on, Battery status, Standby status, Wireless status, and
Bluetooth status. |
|
4-Power switch:
The power switch can
also be programmed to shut down the computer or put it into standby,
sleep, or hibernation. |
|
5-Forward and Back keys:
used with your
Internet browser, such as Netscape Navigator and Internet Explorer. |
6-TrackPoint stick:
The keyboard contains
the unique TrackPoint cursor-pointing device. Pointing, selecting, and
dragging are all part of a single process that you can perform without
moving your fingers from typing position.
7-TrackPoint buttons
8-UltraNav touch pad
the UltraNav touch
pad to move the cursor. The TrackPoint and touch pad buttons provide
functions similar to those of a mouse and its buttons.
9-UltraNav touch
pad buttons |
|
10-Fn + spacebar:
Press Fn+Spacebar to
start the FullScreen Magnifier and enlarge the active window.
|
|
11-Fn key :
Use the Fn key to
take advantage of ThinkPad functions, such as turning on the ThinkLight).
|
|
12-Access IBM button:
Press the Access IBM
button to open the ThinkVantage Productivity Center, |
|
13-Volume
control buttons:
quickly adjust the
volume or mute the sound from your ThinkPad computer. |
|
|
14-Bluetooth
antenna:
Bluetooth antenna |
|
|
Bottom
Side View |
|
 |
| 1-Li-Ion
battery:
Use your computer with battery power whenever ac power is unavailable,
Use the Battery
MaxiMiser wizard to adjust your power setting as needed. |
| 2-Docking
connector :
With a ThinkPad Dock
II, a ThinkPad Mini Dock, or a ThinkPad Port Replicator II, you can
extend the computer capabilities when you are in your office or home. |
| 3-Memory
upgrade slot:
Increase the amount
of memory in your computer by installing a memory module in the memory
bay. Memory modules are available as options |
| 4-Infrared
port: The
infrared port enables the computer to communicate with other devices
that have infrared data-transfer capability, such as some personal
digital assistants (PDAs) and mobile computers. |
| 5-Built-in
stereo speakers:
The stereo speakers
are built into the ThinkPad computer. |
| 6-Labels for
identification:
The serial number
label identifies your computer. The Microsoft Certificate of
Authenticity (COA) label for the preinstalled operating system is
attached. |
|
Rear
Side View |
|
1-Power jack
The ac
adapter cable connects to the computer power jack to provide power to
the computer and charge the battery.
2-Parallel
connector
The
parallel connector can be used to connect a printer or other parallel
device, and to transfer data between devices |
|
|

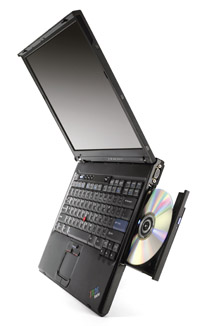

The
Thinkpad T41 gives you desktop PC performance out on the road.
Featuring the NEW Intel® Pentium® M processor up to 1.6GHz and the
Intel chipset, users gain access to the very latest mobile
processing technologies. IBM T41 latest Intel Pentium M processors
incorporate a series of new architectural advances that optimize the
performance of your notebook giving users advanced notebook
processing power and enhanced battery life for extended mobility.
The Mobile IBM Thinkpad T41 supports up to 2GB of system memory and
the latest hard drives as well as new USB 2.0.
T41 External device connectivity
